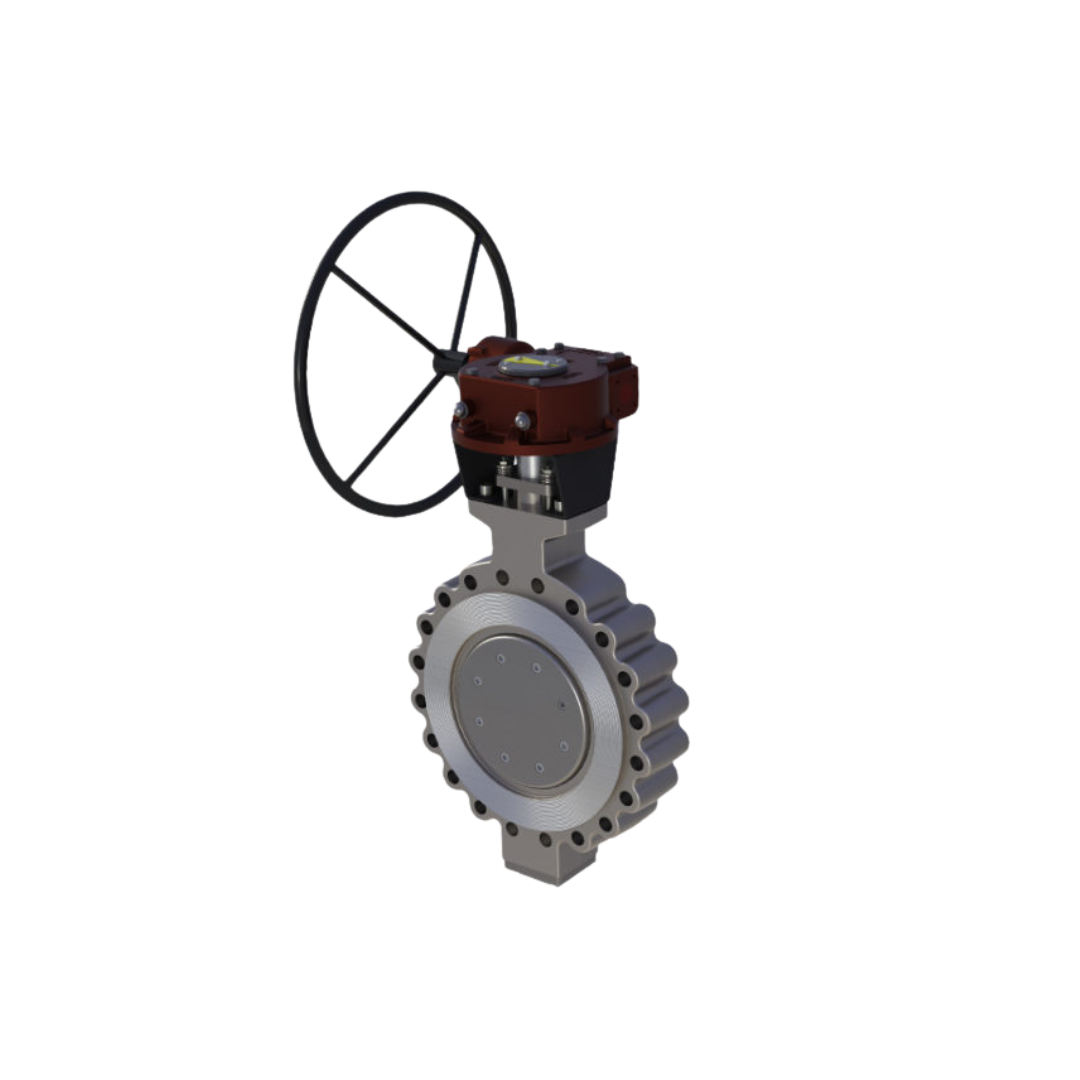

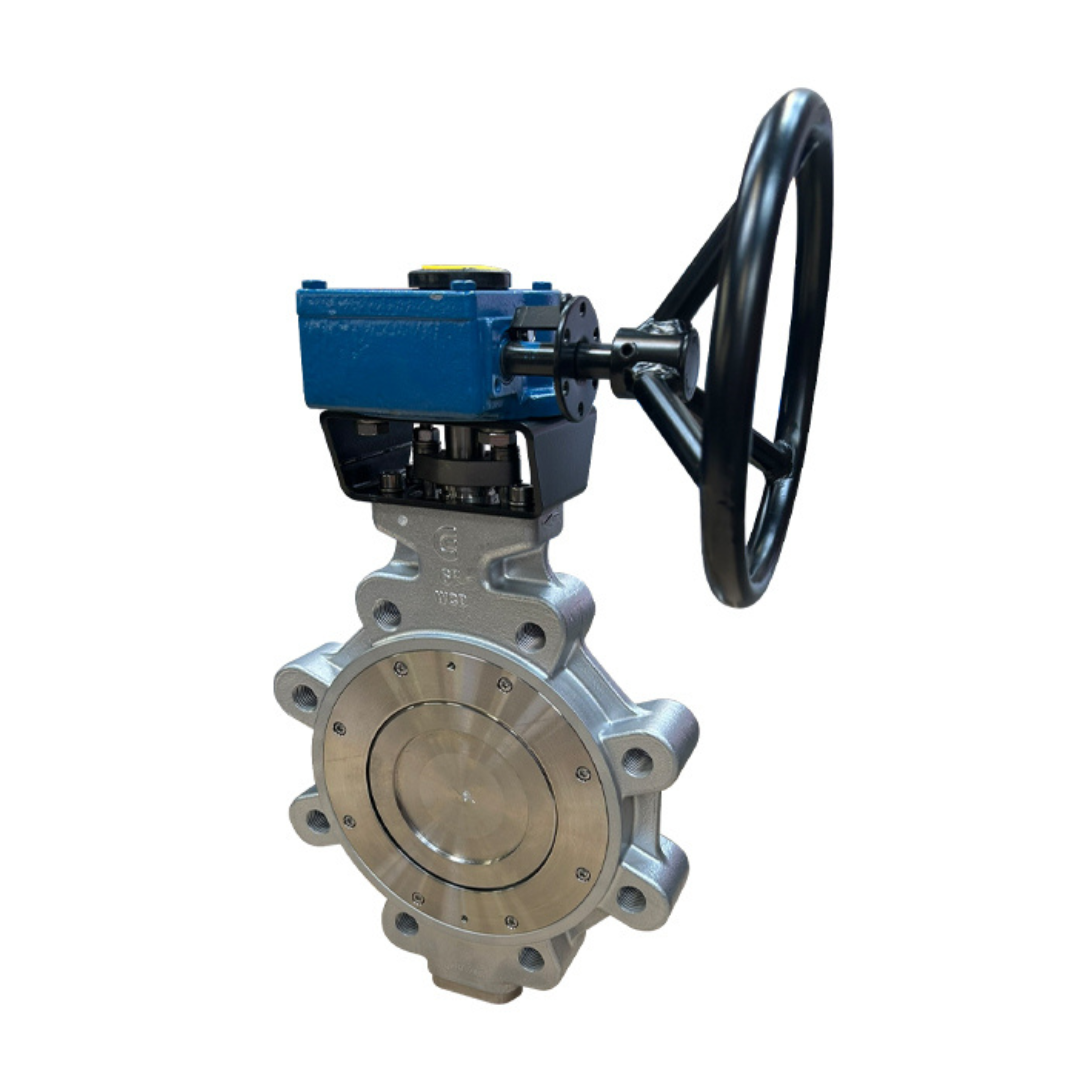

High Performance Stainless Steel Double Offset Lugged Butterfly Valve

Stainless Steel Double Offset Butterfly – Lugged PN16/25

The Stainless Steel Double Offset Butterfly valve is a high-performance, lugged design engineered for reliable service in demanding systems. Featuring a patented double eccentric disc, the valve reduces friction and wear by lifting the disc off the seat during operation—ensuring smooth cycling and tight shut-off.

Constructed with a stainless steel body, disc, and shaft, this wafer-type valve delivers corrosion resistance and durability across industrial environments. It includes a primary RPTFE seat and an optional Inconel 625 secondary seat for enhanced fire-safe performance in compliance with API 607 6th Edition.

Designed for pressure ratings of PN16–25 (2–4″ at PN25; 5–12″ at PN16) and operational temperatures from –60 °C to +230 °C (with Inconel version up to +450 °C on request)  Available in lever-operated (2–5″) or gearbox (6–12″) configurations, and compatible with ISO 5211 actuator mounting, it can be manually or automatically operated.

🔧 Key Features & Benefits

• Double Offset Butterfly Design: Reduces seat contact, lowers torque, and extends service life

• Stainless Steel Construction: Durable CF8M body, disc, and shaft

• Firesafe Seat Option: RPTFE primary with Inconel 625 backup—API 607 certified

• Lugged Wafer Body: Enables dead-end service and compact installation

• Flexible Operating Range: PN16/25; –60 °C to +230 °C (Inconel to +450 °C)

• Manual & Automated Operation: Lever or gearbox, ISO 5211 actuator-ready

• Versatile System Integration: Ideal for API, ANSI and PN flanged systems

🏭 Ideal Applications

The Stainless Steel Double Offset Butterfly valve is perfect for sectors demanding compact and fire-safe flow control, such as:

• Oil & gas, petrochemical, and chemical industries

• Water and wastewater treatment plants

• Marine, offshore platforms, and utilities

• HVAC, power generation, and process engineering
