PN16 Zwick L1 Tricon Triple Offset

SKU: Zwick-L1-Tricon-Triple-Offset-PN16

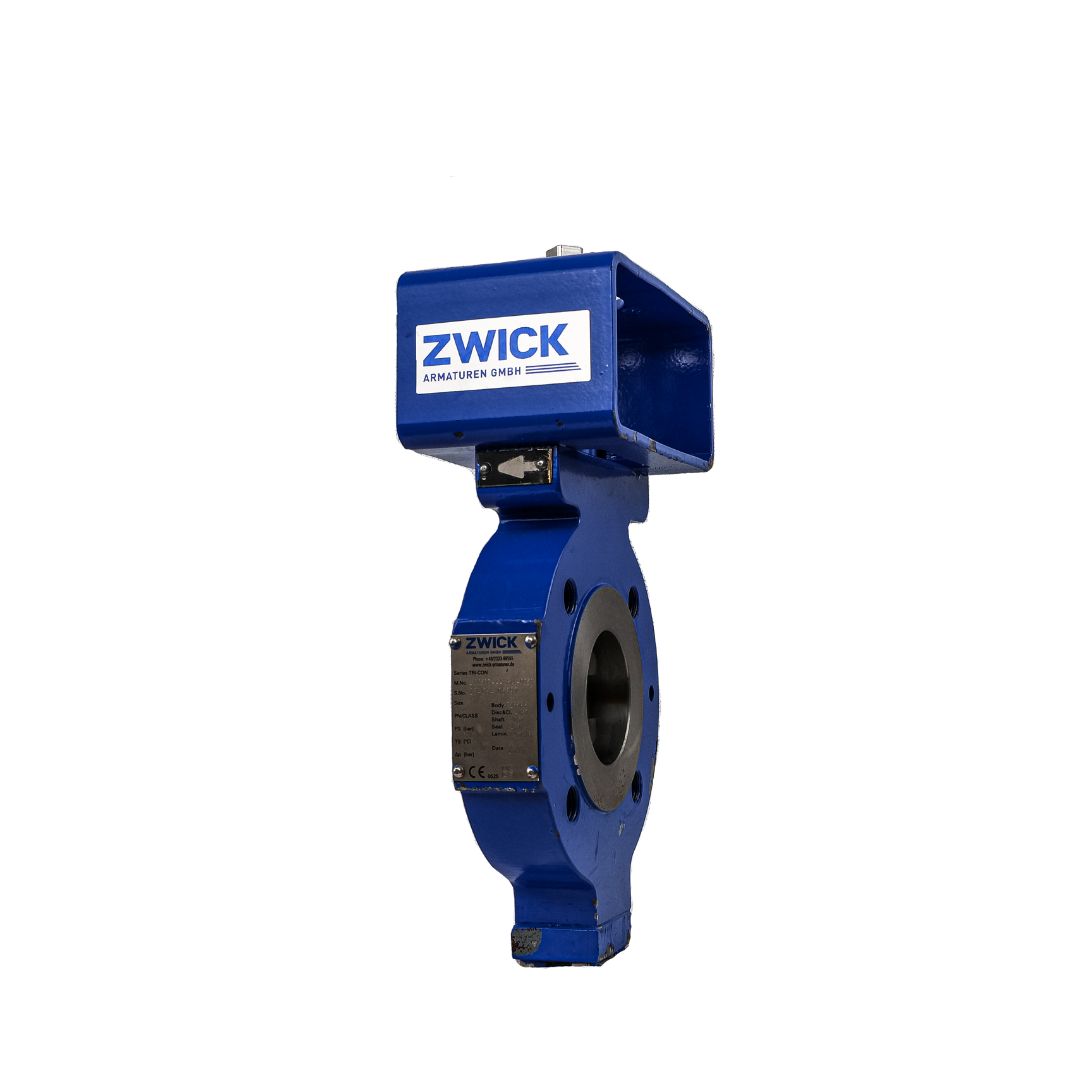

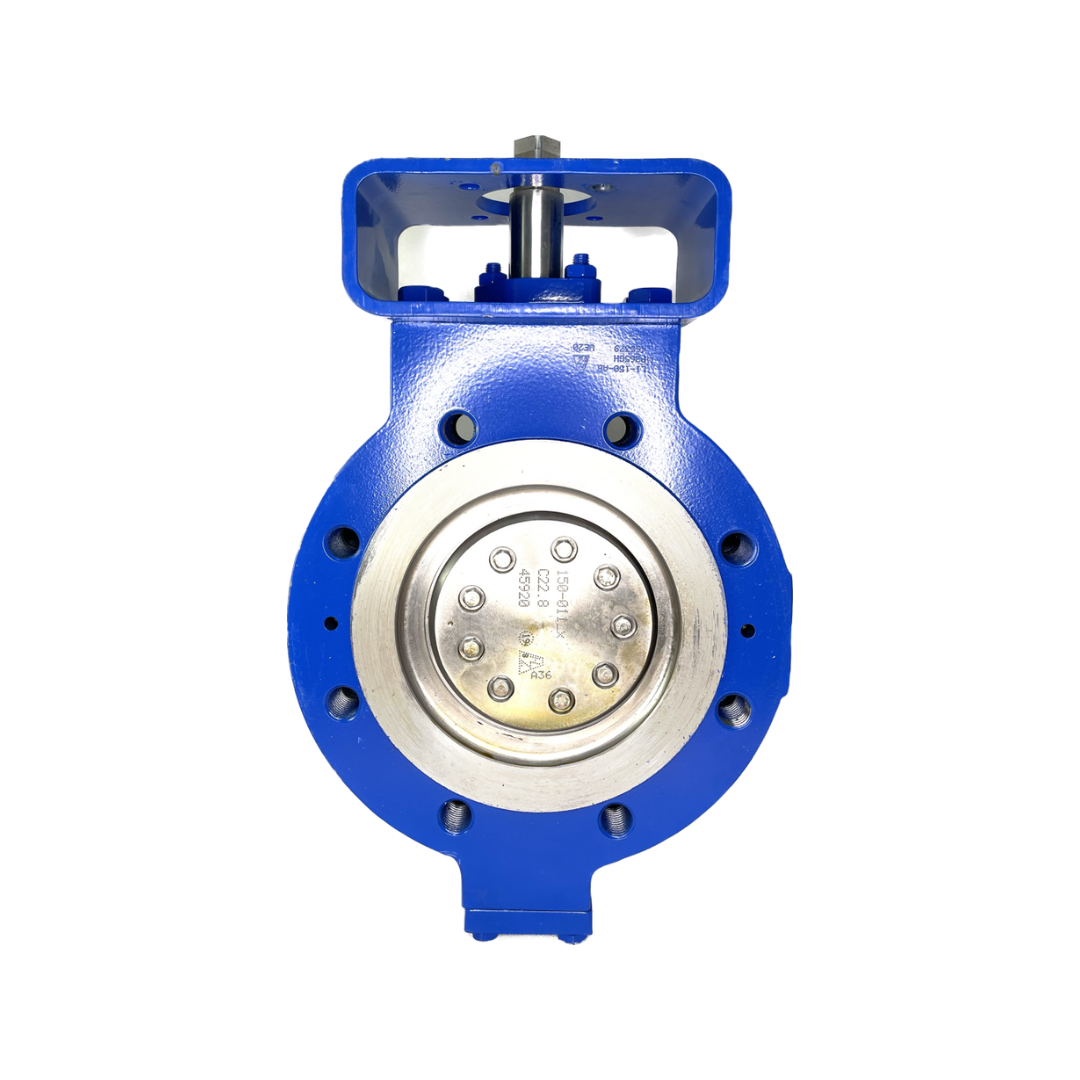

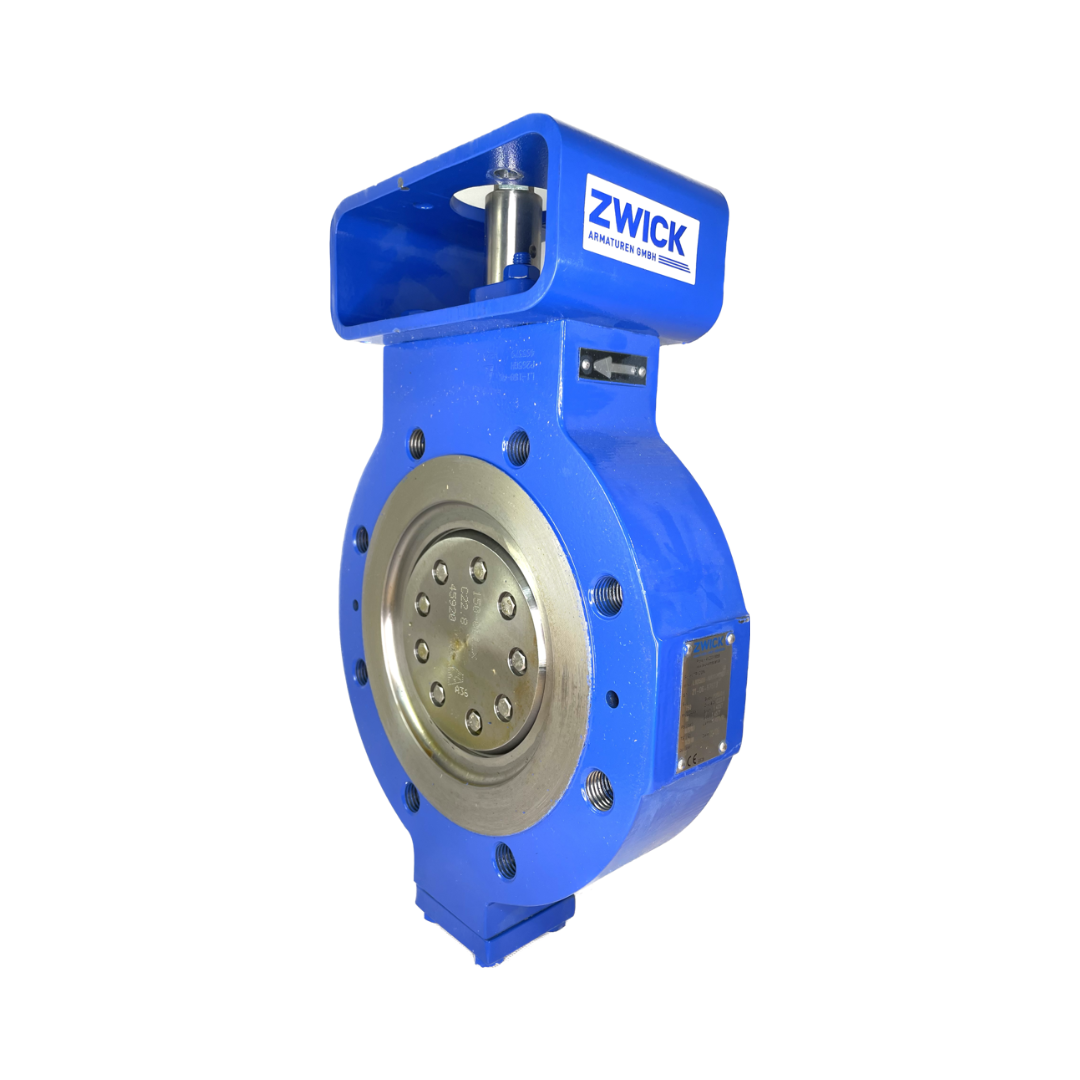

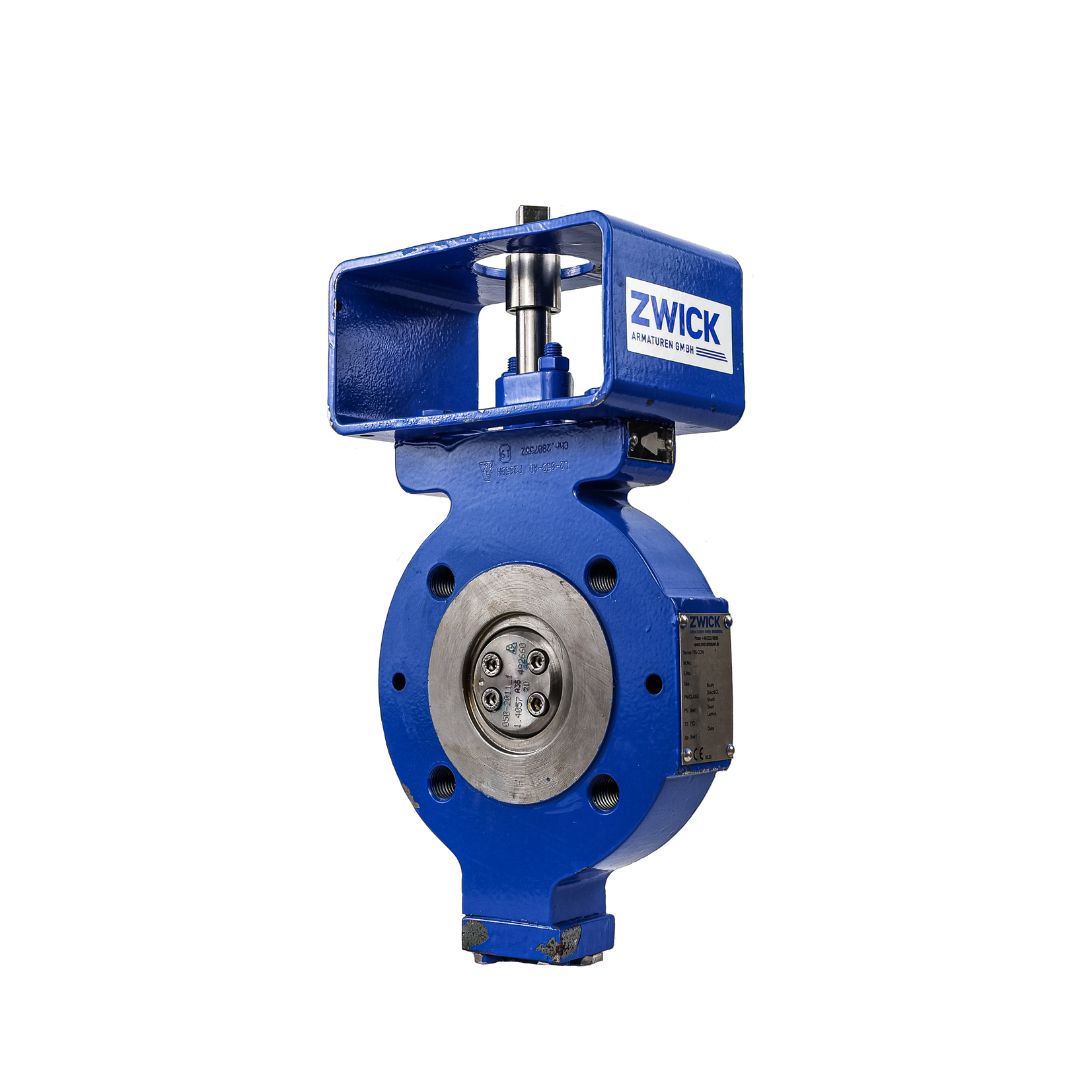

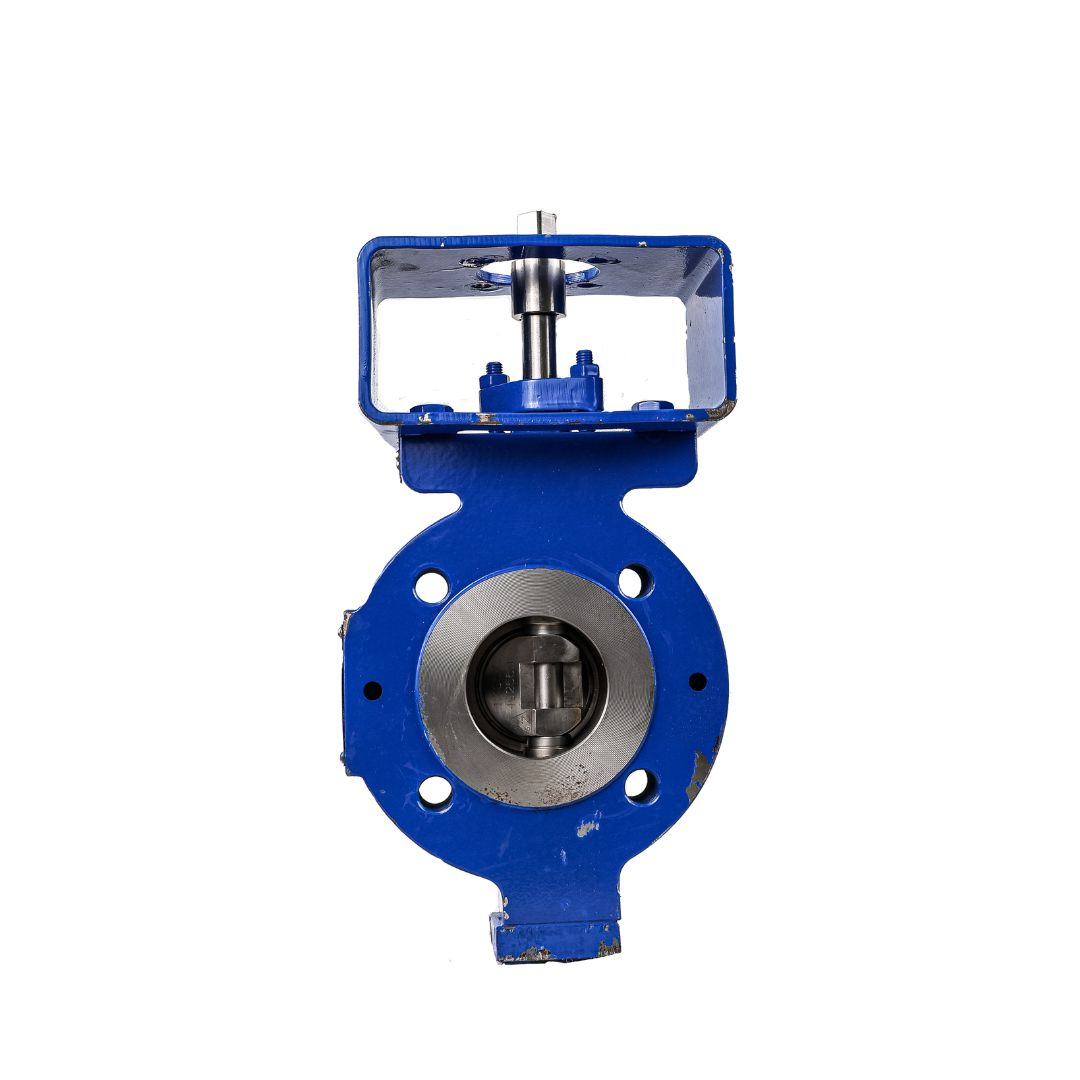

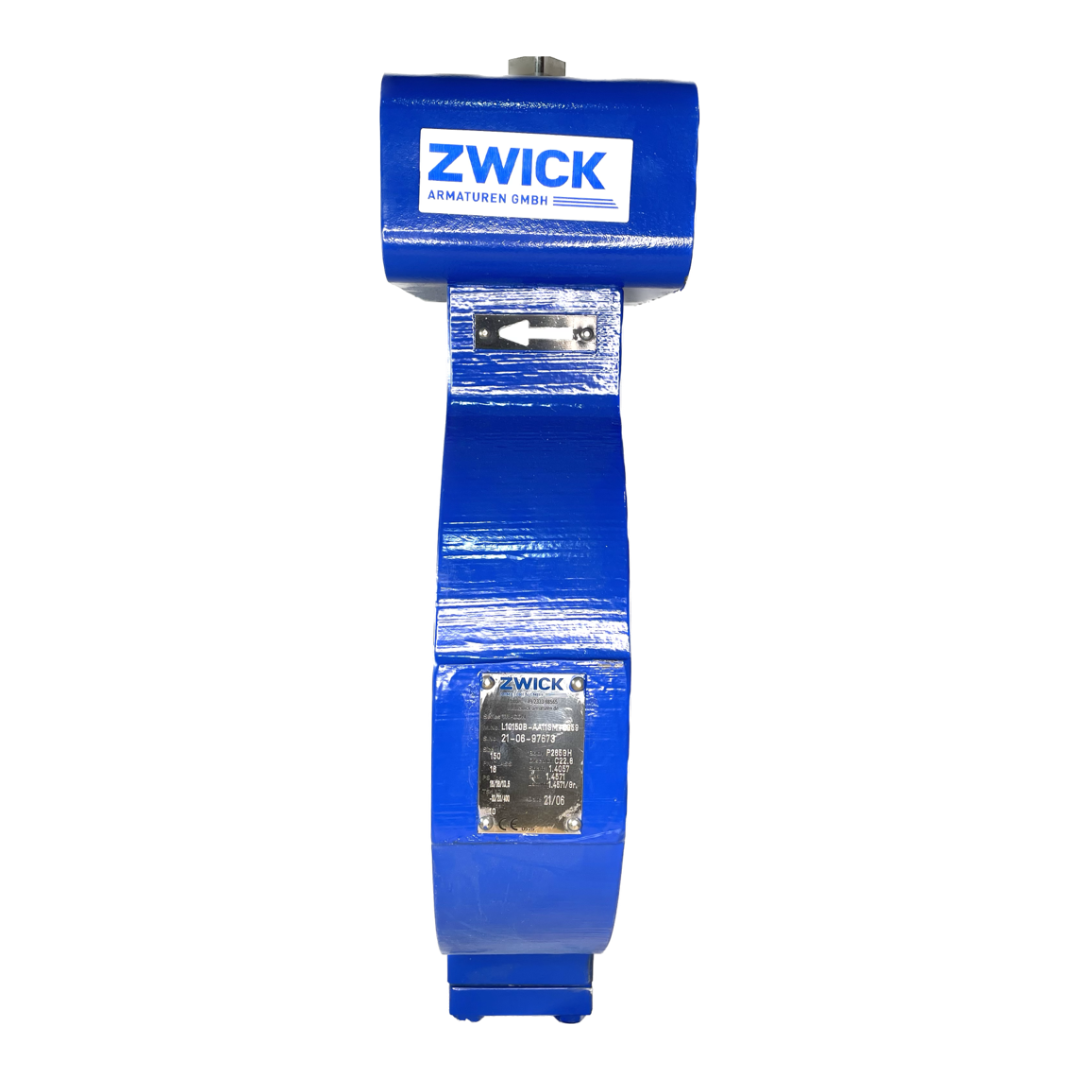

PN16 Zwick L1 Tricon Wafer/Lug Triple Offset Butterfly Valve, P265GH Body, C22.9 Disc, 1.4057 Shaft, 1.4571/Gr. SS/Graph Seal. Bare Shaft With ISO 5211 Mounting Bracket

GENERAL CHARACTERISTICS

  • Triple eccentric design
  • Metal seating
  • Pressure classes according ANSI 150/300/600/900 and PN 10/16/25/40/63/100/160
  • Full bi-directional shutoff as per API 598 and/or DIN EN 12266-1
  • Temperature range up to 815°C
  • Size range 2″ – 88″ (DN 50-2200)
  • Friction free opening and closing
  • Vacuum tight
  • Laminated seal and seat made of stainless steel
  • Anti blow-out shaft API 609
  • Steel casting, stainless steel, special alloys
  • Fire-safe acc. to BS 6755 and API 607 4th ed. for both flow directions
  • Fugitive emission control acc. to “TA-Luft II”
  • Optional Double Block & Bleed Design
  • Special customer requirements on request
  • SIL 3
  • EPA 21
