Orbinox Knife Gate Valves for high pressure applications

Here at BM Engineering, we’re big believers in having the right tools for the job. When it comes to applications involving thick media, a knife gate valve can be an invaluable ally to cut through media containing solids. In this article, we explain the design and function of knife gate valves, as well as giving you an overview of our Orbinox knife gate valves.

Knife gate valves are so called because of their ability to cut through media that contains solids. They are a common valve, seen across many industries, for processing very thick media. Knife gate valves tend to be used in pulp and paper, slurry and mining, water treatment, power generation and many other industrial applications.

Orbinox knife gate valves

We are proud partners of Orbinox UK and hold stock of their knife gate valves in sizes 80mm to 600mm. Both handwheel operated and pneumatic double acting cylinder versions are stocked in cast iron and stainless steel. Other operators – such as chain wheel, handwheel with non-rising stem, lever and electric actuator – are also available direct from Orbinox’s factory in Spain.

Here is just a small selection of some of the knife gate valves that we can supply from the Orbinox range.

HB – Bidirectional – High Pressure- Knife Gate Valve

HB - Bidirectional - High Pressure Knife Gate Valve

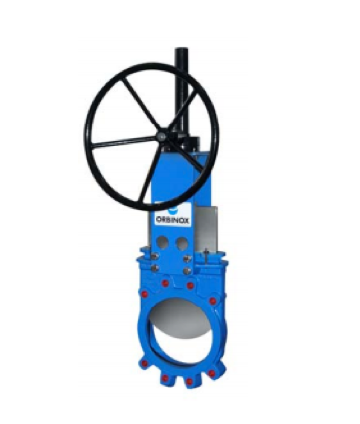

Caption: HB – Bidirectional – High Pressure Knife Gate Valve

The HB model knife gate is a bi-directional valve designed for general industrial service applications. The design of the body and seat assures non-clogging shutoff on suspended solids in industries such as:

  • Wastewater treatment plants
  • Chemical plants
  • Food and Beverage

Sizes: DN 50 to DN 300 (larger diameters on request)

Working pressure: DN 50 to DN 300: 16 kg/cm²

 Standard flange connection: DIN PN 16

EX (SER.10) – Unidirectional – Knife Gate Valve

Caption: EX (SER.10) – Unidirectional Knife Gate Valve

The EX model knife gate is a uni-directional wafer valve designed for general industrial service applications. The design of the body and seat assures non-clogging shutoff on suspended solids in industries such as:

  • Pulp and Paper
  • Power plants
  • Wastewater treatment plants
  • Chemical plants
  • Food and Beverage
  • Bulk handling
  • Mining

Sizes: DN 50 to DN 1200 (larger diameters on request)

Working pressure:

  • DN 50 to DN 250: 10 kg/cm2
  • DN 300 to DN 400: 6 kg/cm2
  • DN 450: 5 kg/cm2
  • DN 500 to DN 600: 4 kg/cm2
  • DN 700 to DN 1200: 2 kg/cm2

Standard flange connection: EN1092 PN10 and ANSI B16.5 (class 150)

Who are Orbinox UK?

Orbinox Group was founded in Spain in the late 1960s as a manufacturer of Knife Gate valves. Today, they have manufacturing plants in Spain, Germany, USA, Canada, China and the UK. Orbinox UK has a large stockholding of valves and provides engineering and support services to many industries including water, waste water, bulk handling, pulp and paper, chemical processes and a wide range of applications for the oil and gas industries.

Speak to BM Engineering Supplies today about our complete range of Knife Gate Valves by calling 0141 762 0657 or email sales@bmengineering.co.uk.
